T-SQL Grouping Set Showcase

Greetings all,

In the interim, whilst I juggle my time to get more in-depth posts rolled out (like the one surrounding Alexa skills), I back-tracked once again to look at overlooked features from the distant past of SQL 2008. I’ve chosen the topic of GROUPING SETS as the basis of this post; which basically boils down to a really nice way to return multiple levels of aggregation in a single result set.

A quick run through then – the following example illustrates a sample database with four tables; Staff, Perk, HolidayRequest and SalaryPayment. The HolidayRequest table has a computed column (based on ‘DateFrom’ and ‘DateTo’) that specifies how many days holiday have been requested (per request) and the SalaryPayment table has an ‘Amount’ column (salary per month). These represent our key aggregation fields. I haven’t actually referenced all columns in the samples provided; I just wanted to give the examples a little bit of extra padding (so they feel more complete).

The following T-SQL shows aggregations targeting total holiday days requested grouped by staff name, department and department and job title (see the GetHolidayRequestDaysSumInfo stored procedure in the full listing for further details):

-- Holiday request days (summed), grouped by staff name (two daves are cobbled together here)
SELECT
s.FirstName + ' ' + s.LastName AS [StaffName]
, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
FROM dbo.Staff s
	INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
GROUP BY s.FirstName + ' ' + s.LastName;

-- Holiday request days (summed), grouped by department
SELECT
s.Department
, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
FROM dbo.Staff s
	INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
GROUP BY Department;

-- Holiday request days (summed), grouped by department and job title
SELECT
s.Department
, s.JobTitle
, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
FROM dbo.Staff s
	INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
GROUP BY s.Department, s.JobTitle;

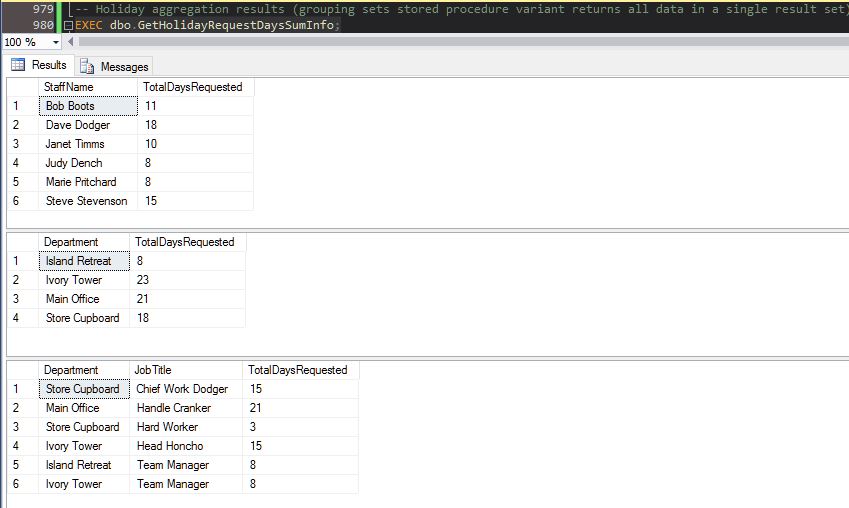

The results look like this:

Holiday Request Group Queries.

Holiday Request Group Queries.

With traditional GROUP BY statements you need to split aggregations, so you can only perform one per result set. This is where GROUPING SETS come in handy; here is a single statement that returns the results from the statements above, but in a single result set (again, see the GetHolidayRequestDaysSumInfoUsingGroupingSets for more information, within the full listing):

-- Holiday request days (summed), group sets included for staff name, department and department and job title
SELECT
s.FirstName + ' ' + s.LastName AS [StaffName]
, s.Department
, s.JobTitle
, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
FROM dbo.Staff s
	INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
GROUP BY GROUPING SETS
(
	(s.FirstName + ' ' + s.LastName)
	, (s.Department)
	, (s.Department, s.JobTitle)
);

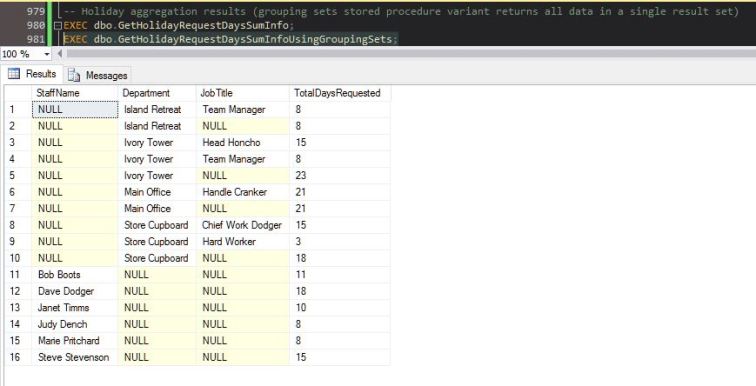

Again, here are the super fabulous results from this particular query:

Holiday Request Grouping Set Queries.

Holiday Request Grouping Set Queries.

Pretty neat! Just to nail the point home here are a few extra examples focusing on the summing of salary payments, grouped by various facets (individual statements, for starters, as shown in the GetSalarySumInfo procedure):

-- Salary sum info grouped by staff name (two daves are, of course, grouped by this)
SELECT
s.FirstName + ' ' + s.LastName AS [StaffName]
, SUM(sp.Amount) AS [TotalPay]
FROM dbo.Staff s
	INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
GROUP BY s.FirstName + ' ' + s.LastName;

-- Salary sum info grouped by job title
SELECT
s.JobTitle
, SUM(sp.Amount) AS [TotalPay]
FROM dbo.Staff s
	INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
GROUP BY s.JobTitle;

-- Salary sum info grouped by department
SELECT
s.Department
, SUM(sp.Amount) AS [TotalPay]
FROM dbo.Staff s
	INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
GROUP BY s.Department

-- Salary sum info grouped by perk name
SELECT
p.PerkName
, SUM(sp.Amount) AS [TotalPay]
FROM dbo.Staff s
	INNER JOIN dbo.Perk p ON s.Perk = p.Id
	INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
GROUP BY p.PerkName;

-- Salary sum info grouped by department and job title
SELECT
s.Department
, s.JobTitle
, SUM(sp.Amount) AS [TotalPay]
FROM dbo.Staff s
	INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
GROUP BY s.Department, s.JobTitle;

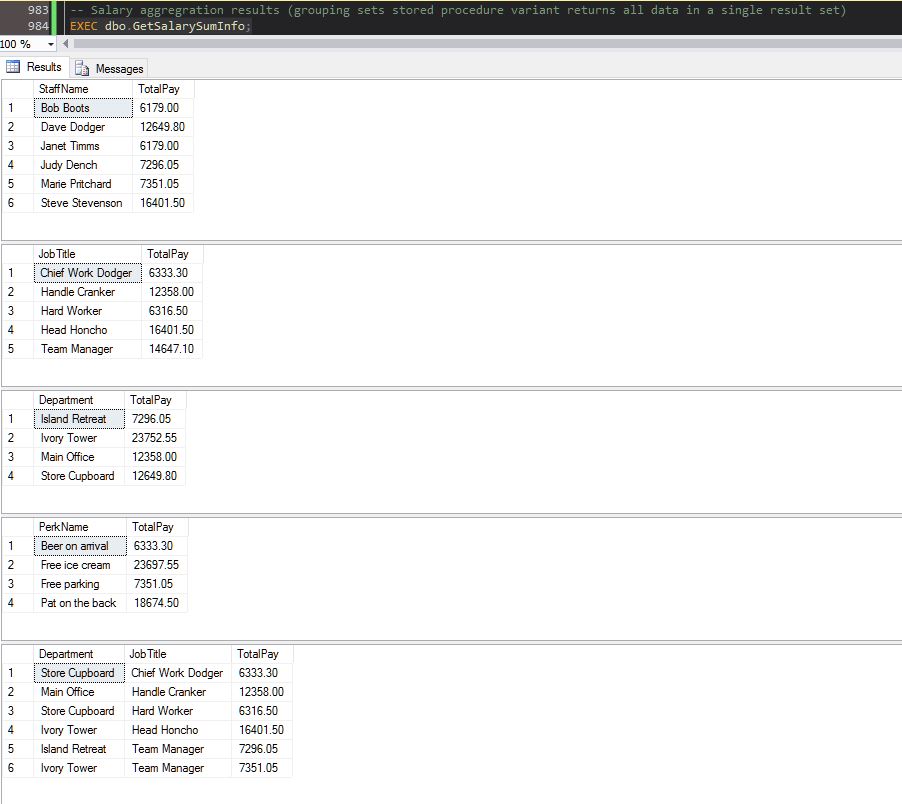

Results from our individual statements look a little like this:

Salary Group Queries.

Salary Group Queries.

Lastly, here’s the equivalent, single, query using GROUPING SETS (see GetSalarySumInfoUsingGroupingSets in the full listing):

-- Salary sum info grouped by staff name, department, job title, perk name and department/job title, in a single result set
SELECT
s.FirstName + ' ' + s.LastName AS [StaffName]
, s.Department
, s.JobTitle
, p.PerkName
, SUM(sp.Amount) AS [TotalPay]
FROM dbo.Staff s
	INNER JOIN dbo.Perk p ON s.Perk = p.Id
	INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
GROUP BY GROUPING SETS
(
	(s.FirstName + ' ' + s.LastName)
	, (s.JobTitle)
	, (s.Department)
	, (p.PerkName)
	, (s.Department, s.JobTitle)
);

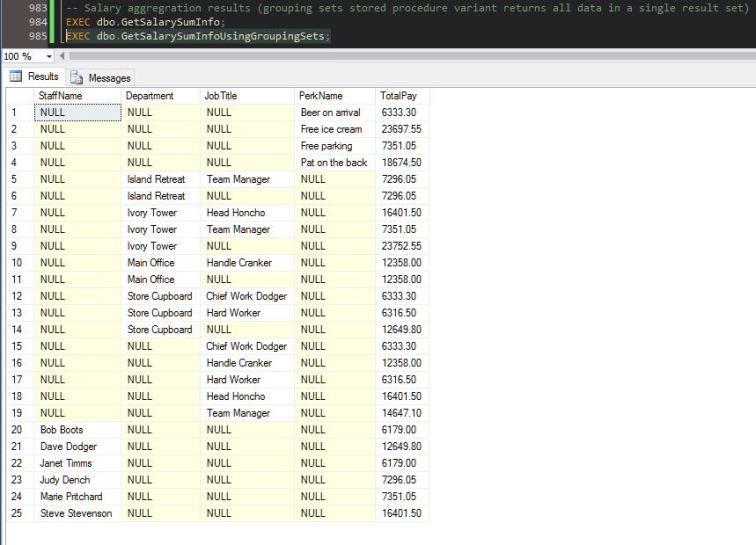

Salary Grouping Set Queries.

Salary Grouping Set Queries.

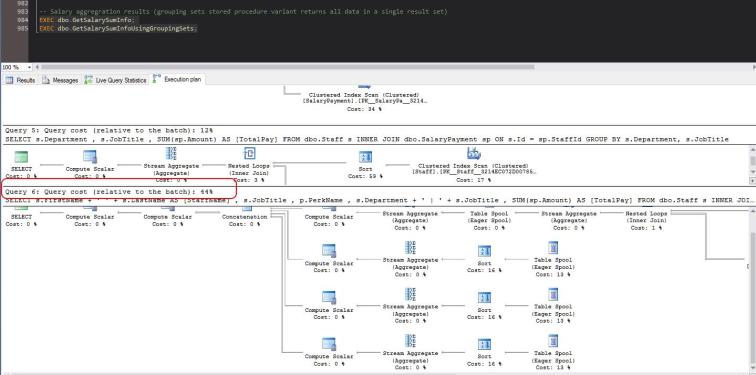

A great little language feature that I have largely overlooked in the past. I do have one or two reservations over performance, but a first inspection of the query plan for the ‘salary’ based example suggests that some marginal gains are on the table, using the stock setup I have (note the table spool, also):

Grouping Sets Performance.

Grouping Sets Performance.

Feels to me like something that deserves further investigation.

Here is the complete listing, if you wish to create the tables with the sample data referenced in this post (procedures, and all, bundled in). Thanks for tuning in!

/*

	Lewis Grint - 18/03/2017

	GROUPING SETS WORKING SAMPLE
	-------------------------------------------------
	1) This example uses four mock database tables (created internally by the script, no work required :op). Run this on a test database of your choice.
		- Staff.
		- Perk.
		- HolidayRequest.
		- SalaryPayment.
	2) Utility, mock data is also inserted by this script (table drop statements, if required, can be found just below this header).
	3) The sample data is then aggregated using GROUP BY via two traditionally structured stored procedures (GetHolidayRequestDaysSumInfo and GetSalarySumInfo). Data is returned (for each grouping) using a separate result set.
	4) Stored procedure variants are then presented that using GROUPING SETS - All GROUP BY variations are returned in a single result set (for illustration purposes only, not saying my grouping selections are actually that helpful in the real world!).

*/

/*
-- Drop table statements, as and when required
DROP TABLE dbo.HolidayRequest;
DROP TABLE dbo.SalaryPayment;
DROP TABLE dbo.Staff;
DROP TABLE dbo.Perk;

*/

-- Habitual setting of preferred QUOTED_IDENTIFIER/ANSI_NULL configuration (even if it's not important for this example)
SET QUOTED_IDENTIFIER ON;
GO
SET ANSI_NULLS ON;
GO

-- Utility variables for gathering up the correct StaffId, when required (and payment dates)
DECLARE
@StaffId							INT
, @FebPayDate						DATE = '2017-02-28'
, @JanPayDate						DATE = '2017-01-31'
, @DecPayDate						DATE = '2016-12-31';

-- 1) Create sample tables to illustrate how GROUPING SETS work

-- Perk table added for nothing more than extra kicks. A staff member can select a company perk (referenced from the Staff table)
IF (OBJECT_ID('dbo.Perk', 'U') IS NULL)
BEGIN

	CREATE TABLE dbo.Perk
	(
		Id							INT				PRIMARY KEY		IDENTITY(1, 1)	NOT NULL
		, PerkName					NVARCHAR(30)									NOT NULL
		, INDEX IX_Perk_PerkName	NONCLUSTERED (PerkName)
	);

END;

-- NOTE: I won't be including more indexes from this point forward, to try and keep the example light(er)

-- Staff table, which for the sake of our example contains first name, last name, job title, department and a fk to 'perks'
IF (OBJECT_ID('dbo.Staff', 'U') IS NULL)
BEGIN

	CREATE TABLE dbo.Staff
	(
		Id							INT				PRIMARY KEY		IDENTITY(1, 1)	NOT NULL
		, FirstName					NVARCHAR(50)									NOT NULL
		, LastName					NVARCHAR(50)									NOT NULL
		, JobTitle					NVARCHAR(50)									NOT NULL
		, Department				NVARCHAR(50)									NOT NULL
		, Perk						INT												NOT NULL
		, CONSTRAINT FK_Staff_Perk	FOREIGN KEY (Perk) REFERENCES dbo.Perk (Id)
	);

END;

-- SalaryPayment table, which contains multiple rows for each staff member (one for each salary payment)
IF (OBJECT_ID('dbo.SalaryPayment', 'U') IS NULL)
BEGIN

	CREATE TABLE dbo.SalaryPayment
	(
		Id							INT				PRIMARY KEY		IDENTITY(1, 1)	NOT NULL
		, StaffId					INT												NOT NULL
		, PaymentDate				DATE											NOT NULL
		, Amount					MONEY
		, CONSTRAINT FK_SalaryPayment_Staff			FOREIGN KEY (StaffId) REFERENCES dbo.Staff (Id)
	);

END;

-- HolidayRequest table, which contains multiple rows for each staff member (one for each holiday request)
IF (OBJECT_ID('dbo.HolidayRequest', 'U') IS NULL)
BEGIN

	CREATE TABLE dbo.HolidayRequest
	(
		Id							INT				PRIMARY KEY		IDENTITY(1, 1)	NOT NULL
		, StaffId					INT												NOT NULL
		, DateFrom					DATE											NOT NULL
		, DateTo					DATE											NOT NULL
		-- Final column is computed based on the difference between the start and end date (requested), in days. Simple, but fits for the purposes of the example (obviously, doesn't take into account weekends, bank holiday, etc.)
		, NumberOfDaysRequested		AS (DATEDIFF(DAY, DateFrom, DateTo) + 1)
		, CONSTRAINT FK_HolidayRequest_Staff		FOREIGN KEY (StaffId) REFERENCES dbo.Staff (Id)
	);

END;

--2) Insert test data into each table

-- Perk table test data
IF NOT EXISTS
(
	SELECT *
	FROM dbo.Perk p
)
BEGIN

	INSERT INTO dbo.Perk
	(
		PerkName
	)
	VALUES
	(
		'Free ice cream'
	)
	,
	(
		'Free parking'
	)
	,
	(
		'Beer on arrival'
	)
	,
	(
		'Pat on the back'
	);

END;

-- Staff table test data (including perk info)
IF NOT EXISTS
(
	SELECT *
	FROM dbo.Staff s
)
BEGIN

	INSERT INTO dbo.Staff
	(
		FirstName
		, LastName
		, JobTitle
		, Department
		, Perk
	)
	VALUES
	(
		'Steve'
		, 'Stevenson'
		, 'Head Honcho'
		, 'Ivory Tower'
		,
		(
			SELECT
			Id
			FROM dbo.Perk p
			WHERE p.PerkName = 'Free ice cream'
		)
	)
	,
	(
		'Marie'
		, 'Pritchard'
		, 'Team Manager'
		, 'Ivory Tower'
		,
		(
			SELECT
			Id
			FROM dbo.Perk p
			WHERE p.PerkName = 'Free parking'
		)
	)
	,
	(
		'Judy'
		, 'Dench'
		, 'Team Manager'
		, 'Island Retreat'
		,
		(
			SELECT
			Id
			FROM dbo.Perk p
			WHERE p.PerkName = 'Free ice cream'
		)
	)
	,
	(
		'Dave'
		, 'Dodger'
		, 'Chief Work Dodger'
		, 'Store Cupboard'
		,
		(
			SELECT
			Id
			FROM dbo.Perk p
			WHERE p.PerkName = 'Beer on arrival'
		)
	)
	-- There's another Dave Dodger at the company, but he is actually a pretty useful chap
	,
	(
		'Dave'
		, 'Dodger'
		, 'Hard Worker'
		, 'Store Cupboard'
		,
		(
			SELECT
			Id
			FROM dbo.Perk p
			WHERE p.PerkName = 'Pat on the back'
		)
	)
	,
	(
		'Bob'
		, 'Boots'
		, 'Handle Cranker'
		, 'Main Office'
		,
		(
			SELECT
			Id
			FROM dbo.Perk p
			WHERE p.PerkName = 'Pat on the back'
		)
	)
	,
	(
		'Janet'
		, 'Timms'
		, 'Handle Cranker'
		, 'Main Office'
		,
		(
			SELECT
			Id
			FROM dbo.Perk p
			WHERE p.PerkName = 'Pat on the back'
		)
	);

END;

-- SalaryPayment table test data
IF NOT EXISTS
(
	SELECT *
	FROM dbo.SalaryPayment sp
)
BEGIN

	-- Steve Stevenson | Head Honcho
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Steve'
		AND s.LastName = 'Stevenson'
		AND s.JobTitle = 'Head Honcho'
	);

	INSERT INTO dbo.SalaryPayment
	(
		StaffId
		, PaymentDate
		, Amount
	)
	VALUES
	(
		@StaffId
		, @DecPayDate
		, 5580.50
	)
	,
	(

		@StaffId
		, @JanPayDate
		, 5240.50
	)
	,
	(

		@StaffId
		, @FebPayDate
		, 5580.50
	);

	-- Marie Pritchard | Team Manager
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Marie'
		AND s.LastName = 'Pritchard'
		AND s.JobTitle = 'Team Manager'
	);

	INSERT INTO dbo.SalaryPayment
	(
		StaffId
		, PaymentDate
		, Amount
	)
	VALUES
	(
		@StaffId
		, @DecPayDate
		, 2500.75
	)
	,
	(

		@StaffId
		, @JanPayDate
		, 2425.15
	)
	,
	(

		@StaffId
		, @FebPayDate
		, 2425.15
	);

	-- Judy Dench | Team Manager
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Judy'
		AND s.LastName = 'Dench'
		AND s.JobTitle = 'Team Manager'
	);

	INSERT INTO dbo.SalaryPayment
	(
		StaffId
		, PaymentDate
		, Amount
	)
	VALUES
	(
		@StaffId
		, @DecPayDate
		, 2495.75
	)
	,
	(

		@StaffId
		, @JanPayDate
		, 2400.15
	)
	,
	(

		@StaffId
		, @FebPayDate
		, 2400.15
	);

	-- Dave Dodger | Chief Work Dodger
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Dave'
		AND s.LastName = 'Dodger'
		AND s.JobTitle = 'Chief Work Dodger'
	);

	INSERT INTO dbo.SalaryPayment
	(
		StaffId
		, PaymentDate
		, Amount
	)
	VALUES
	(
		@StaffId
		, @DecPayDate
		, 2122.90
	)
	,
	(

		@StaffId
		, @JanPayDate
		, 2105.20
	)
	,
	(

		@StaffId
		, @FebPayDate
		, 2105.20
	);

	-- Dave Dodger | Hard Worker
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Dave'
		AND s.LastName = 'Dodger'
		AND s.JobTitle = 'Hard Worker'
	);

	INSERT INTO dbo.SalaryPayment
	(
		StaffId
		, PaymentDate
		, Amount
	)
	VALUES
	(
		@StaffId
		, @DecPayDate
		, 2115.50
	)
	,
	(

		@StaffId
		, @JanPayDate
		, 2100.50
	)
	,
	(

		@StaffId
		, @FebPayDate
		, 2100.50
	);

	-- Bob Boots | Handle Cranker
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Bob'
		AND s.LastName = 'Boots'
		AND s.JobTitle = 'Handle Cranker'
	);

	INSERT INTO dbo.SalaryPayment
	(
		StaffId
		, PaymentDate
		, Amount
	)
	VALUES
	(
		@StaffId
		, @DecPayDate
		, 2100.00
	)
	,
	(

		@StaffId
		, @JanPayDate
		, 2039.50
	)
	,
	(

		@StaffId
		, @FebPayDate
		, 2039.50
	);

	-- Janet Timms | Handle Cranker
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Janet'
		AND s.LastName = 'Timms'
		AND s.JobTitle = 'Handle Cranker'
	);

	INSERT INTO dbo.SalaryPayment
	(
		StaffId
		, PaymentDate
		, Amount
	)
	VALUES
	(
		@StaffId
		, @DecPayDate
		, 2100.00
	)
	,
	(

		@StaffId
		, @JanPayDate
		, 2039.50
	)
	,
	(

		@StaffId
		, @FebPayDate
		, 2039.50
	);

END;

-- HolidayRequest table test data
IF NOT EXISTS
(
	SELECT *
	FROM dbo.HolidayRequest hr
)
BEGIN

	-- For ease, everyone has three holiday requests

	-- Steve Stevenson | Head Honcho
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Steve'
		AND s.LastName = 'Stevenson'
		AND s.JobTitle = 'Head Honcho'
	);

	INSERT INTO dbo.HolidayRequest
	(
		StaffId
		, DateFrom
		, DateTo
	)
	VALUES
	(
		@StaffId
		, '2017-01-30'
		, '2017-02-03'
	)
	,
	(
		@StaffId
		, '2017-05-22'
		, '2017-05-26'
	)
	,
	(
		@StaffId
		, '2017-07-24'
		, '2017-07-28'
	);

	-- Marie Pritchard | Team Manager
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Marie'
		AND s.LastName = 'Pritchard'
		AND s.JobTitle = 'Team Manager'
	);

	INSERT INTO dbo.HolidayRequest
	(
		StaffId
		, DateFrom
		, DateTo
	)
	VALUES
	(
		@StaffId
		, '2017-03-23'
		, '2017-03-24'
	)
	,
	(
		@StaffId
		, '2017-06-12'
		, '2017-06-16'
	)
	,
	(
		@StaffId
		, '2017-08-14'
		, '2017-08-14'
	);

	-- Judy Dench | Team Manager
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Judy'
		AND s.LastName = 'Dench'
		AND s.JobTitle = 'Team Manager'
	);

	INSERT INTO dbo.HolidayRequest
	(
		StaffId
		, DateFrom
		, DateTo
	)
	VALUES
	(
		@StaffId
		, '2017-03-24'
		, '2017-03-25'
	)
	,
	(
		@StaffId
		, '2017-06-12'
		, '2017-06-15'
	)
	,
	(
		@StaffId
		, '2017-08-15'
		, '2017-08-16'
	);

	-- Dave Dodger | Chief Work Dodger
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Dave'
		AND s.LastName = 'Dodger'
		AND s.JobTitle = 'Chief Work Dodger'
	);

	INSERT INTO dbo.HolidayRequest
	(
		StaffId
		, DateFrom
		, DateTo
	)
	VALUES
	(
		@StaffId
		, '2017-03-20'
		, '2017-03-24'
	)
	,
	(
		@StaffId
		, '2017-03-27'
		, '2017-03-31'
	)
	,
	(
		@StaffId
		, '2017-04-03'
		, '2017-04-07'
	);

	-- Dave Dodger | Hard Worker
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Dave'
		AND s.LastName = 'Dodger'
		AND s.JobTitle = 'Hard Worker'
	);

	INSERT INTO dbo.HolidayRequest
	(
		StaffId
		, DateFrom
		, DateTo
	)
	VALUES
	(
		@StaffId
		, '2017-03-31'
		, '2017-03-31'
	)
	,
	(
		@StaffId
		, '2017-07-31'
		, '2017-07-31'
	)
	,
	(
		@StaffId
		, '2017-09-25'
		, '2017-09-25'
	);

	-- Bob Boots | Handle Cranker
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Bob'
		AND s.LastName = 'Boots'
		AND s.JobTitle = 'Handle Cranker'
	);

	INSERT INTO dbo.HolidayRequest
	(
		StaffId
		, DateFrom
		, DateTo
	)
	VALUES
	(
		@StaffId
		, '2017-05-15'
		, '2017-05-19'
	)
	,
	(
		@StaffId
		, '2017-07-10'
		, '2017-07-12'
	)
	,
	(
		@StaffId
		, '2017-10-11'
		, '2017-10-13'
	);

	-- Janet Timms | Handle Cranker
	SELECT
	@StaffId =
	s.Id
	FROM dbo.Staff s
	WHERE
	(
		s.FirstName = 'Janet'
		AND s.LastName = 'Timms'
		AND s.JobTitle = 'Handle Cranker'
	);

	INSERT INTO dbo.HolidayRequest
	(
		StaffId
		, DateFrom
		, DateTo
	)
	VALUES
	(
		@StaffId
		, '2017-04-10'
		, '2017-04-11'
	)
	,
	(
		@StaffId
		, '2017-06-21'
		, '2017-06-23'
	)
	,
	(
		@StaffId
		, '2017-11-13'
		, '2017-11-17'
	);

END;
GO

-- Create utility stored procedures, just because :op

-- Basic example using the HolidayRequest table
IF (OBJECT_ID('dbo.GetHolidayRequestDaysSumInfo', 'P') IS NOT NULL)
BEGIN

	DROP PROCEDURE dbo.GetHolidayRequestDaysSumInfo;

END;
GO

CREATE PROCEDURE dbo.GetHolidayRequestDaysSumInfo
AS
BEGIN

	-- Holiday request days (summed), grouped by staff name (two daves are cobbled together here)
	SELECT
	s.FirstName + ' ' + s.LastName AS [StaffName]
	, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
	FROM dbo.Staff s
		INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
	GROUP BY s.FirstName + ' ' + s.LastName;

	-- Holiday request days (summed), grouped by department
	SELECT
	s.Department
	, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
	FROM dbo.Staff s
		INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
	GROUP BY Department;

	-- Holiday request days (summed), grouped by department and job title
	SELECT
	s.Department
	, s.JobTitle
	, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
	FROM dbo.Staff s
		INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
	GROUP BY s.Department, s.JobTitle;

END;
GO

IF (OBJECT_ID('dbo.GetHolidayRequestDaysSumInfoUsingGroupingSets', 'P') IS NOT NULL)
BEGIN

	DROP PROCEDURE dbo.GetHolidayRequestDaysSumInfoUsingGroupingSets;

END;
GO

CREATE PROCEDURE dbo.GetHolidayRequestDaysSumInfoUsingGroupingSets
AS
BEGIN

	-- Holiday request days (summed), group sets included for staff name, department and department and job title
	SELECT
	s.FirstName + ' ' + s.LastName AS [StaffName]
	, s.Department
	, s.JobTitle
	, SUM(hr.NumberOfDaysRequested) AS [TotalDaysRequested]
	FROM dbo.Staff s
		INNER JOIN dbo.HolidayRequest hr ON s.Id = hr.StaffId
	GROUP BY GROUPING SETS
	(
		(s.FirstName + ' ' + s.LastName)
		, (s.Department)
		, (s.Department, s.JobTitle)
	);

END;
GO

-- A couple more stored prodecures, focusing on the SalaryPayment table this time
IF (OBJECT_ID('dbo.GetSalarySumInfo', 'P') IS NOT NULL)
BEGIN

	DROP PROCEDURE dbo.GetSalarySumInfo;

END;
GO

CREATE PROCEDURE dbo.GetSalarySumInfo
AS
BEGIN

	-- Salary sum info grouped by staff name (two daves are, of course, grouped by this)
	SELECT
	s.FirstName + ' ' + s.LastName AS [StaffName]
	, SUM(sp.Amount) AS [TotalPay]
	FROM dbo.Staff s
		INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
	GROUP BY s.FirstName + ' ' + s.LastName;

	-- Salary sum info grouped by job title
	SELECT
	s.JobTitle
	, SUM(sp.Amount) AS [TotalPay]
	FROM dbo.Staff s
		INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
	GROUP BY s.JobTitle;

	-- Salary sum info grouped by department
	SELECT
	s.Department
	, SUM(sp.Amount) AS [TotalPay]
	FROM dbo.Staff s
		INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
	GROUP BY s.Department

	-- Salary sum info grouped by perk name
	SELECT
	p.PerkName
	, SUM(sp.Amount) AS [TotalPay]
	FROM dbo.Staff s
		INNER JOIN dbo.Perk p ON s.Perk = p.Id
		INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
	GROUP BY p.PerkName;

	-- Salary sum info grouped by department and job title
	SELECT
	s.Department
	, s.JobTitle
	, SUM(sp.Amount) AS [TotalPay]
	FROM dbo.Staff s
		INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
	GROUP BY s.Department, s.JobTitle;

END;
GO

IF (OBJECT_ID('dbo.GetSalarySumInfoUsingGroupingSets', 'P') IS NOT NULL)
BEGIN

	DROP PROCEDURE dbo.GetSalarySumInfoUsingGroupingSets;

END;
GO

CREATE PROCEDURE dbo.GetSalarySumInfoUsingGroupingSets
AS
BEGIN

	-- Salary sum info grouped by staff name, department, job title, perk name and department/job title, in a single result set
	SELECT
	s.FirstName + ' ' + s.LastName AS [StaffName]
	, s.Department
	, s.JobTitle
	, p.PerkName
	, SUM(sp.Amount) AS [TotalPay]
	FROM dbo.Staff s
		INNER JOIN dbo.Perk p ON s.Perk = p.Id
		INNER JOIN dbo.SalaryPayment sp ON s.Id = sp.StaffId
	GROUP BY GROUPING SETS
	(
		(s.FirstName + ' ' + s.LastName)
		, (s.JobTitle)
		, (s.Department)
		, (p.PerkName)
		, (s.Department, s.JobTitle)
	);

END;
GO

-- Execute stored procedures to inspect the results

-- Holiday aggregation results (grouping sets stored procedure variant returns all data in a single result set)
EXEC dbo.GetHolidayRequestDaysSumInfo;
EXEC dbo.GetHolidayRequestDaysSumInfoUsingGroupingSets;

-- Salary aggregation results (grouping sets stored procedure variant returns all data in a single result set)
EXEC dbo.GetSalarySumInfo;
EXEC dbo.GetSalarySumInfoUsingGroupingSets;

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
